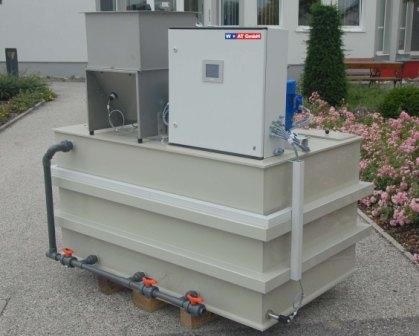

POLYPREP 3KB and 2KB plants


V

A -

POLYELECTROLYTE PREPARATION PLANTS

WELL PROVEN IN TERMS OF:

  • TECHNOLOGY

  • QUALITY

  • ECONOMY

PROCESS DESCRIPTION:

  • Tank consisting of preparation chamber, ripening chamber and dosing chamber, stainless steel agitators and level switches as required and/or requested
  • Dry polymer feeder, dosing screw speed constant
  • PVC water piping system consisting of ball valve, pressure reduction valve with filter, solenoid valve and water meter in supplier standard
  • Polymer powder wetting jet nozzles device and a connection for dosing of a liquid polymer
  • Control panel with Siemens S7-200 and operating terminal OP3

TECHNICAL DESCRIPTION:

In the preparation chamber the stock solution is prepared. In relation to the water flow polyelectrolyte is dosed via the powder polymer feeder o the liquid polymer dosing pump into the jet nozzle device. In the device the polymer is wetted with the required amount of dilution water. The dosing time required by the dry material feeder is calculated by the PLC according to the calibrated dosing capacity and the adjusted concentration. The solution is transformed into a ready-for-use-solution in the preparation and the ripening by slowly operating agitators. To avoid mixing of fresh prepared and ripened polyelectrolyte solution the agitator in the ripening chamber is not in operation during preparation. While the preparing system is in operation the ripened polyelectrolyte solution flows into the dosing chamber. The ripened stock solution is taken out of the dosing chamber continuously. The preparation takes place discontinuously according the level in the dosing chamber. The preparation is started by reaching low level and stopped by reaching high level in the dosing chamber. This design provides continuously the required stock solution in compliance with the ripening time

The power distribution and the process control of the plant is installed in a control panel mounted onto the preparation plant. The control panel consists of all required parts and is equipped with a PLC which controls the process. On the EPROM the process program is stored including the possibility to start an addition liquid polymer dosing pump.

V

A -

Dilution Station"

V

A -

VD"

for dilution of the stock solution to the required dosing solution

TYPE:

V

A -

VD

V

A -

DILUTION STATIONS

WELL PROVEN IN TERMS OF:

  • TECHNOLOGY

  • QUALITY

  • ECONOMY

DESCRIPTION:

  • Piping complete made of PVC
  • Water system consisting of pressure reduction valve, solenoid valve and flow meter
  • Assembled on a mounting plate

FUNCTION

The dilution station is designed for the dilution of the stock solution to the required dosing solution.

DESIGN

Designed for wall installation, pressure reduction valve with water filter, solenoid valve and flow meter.
